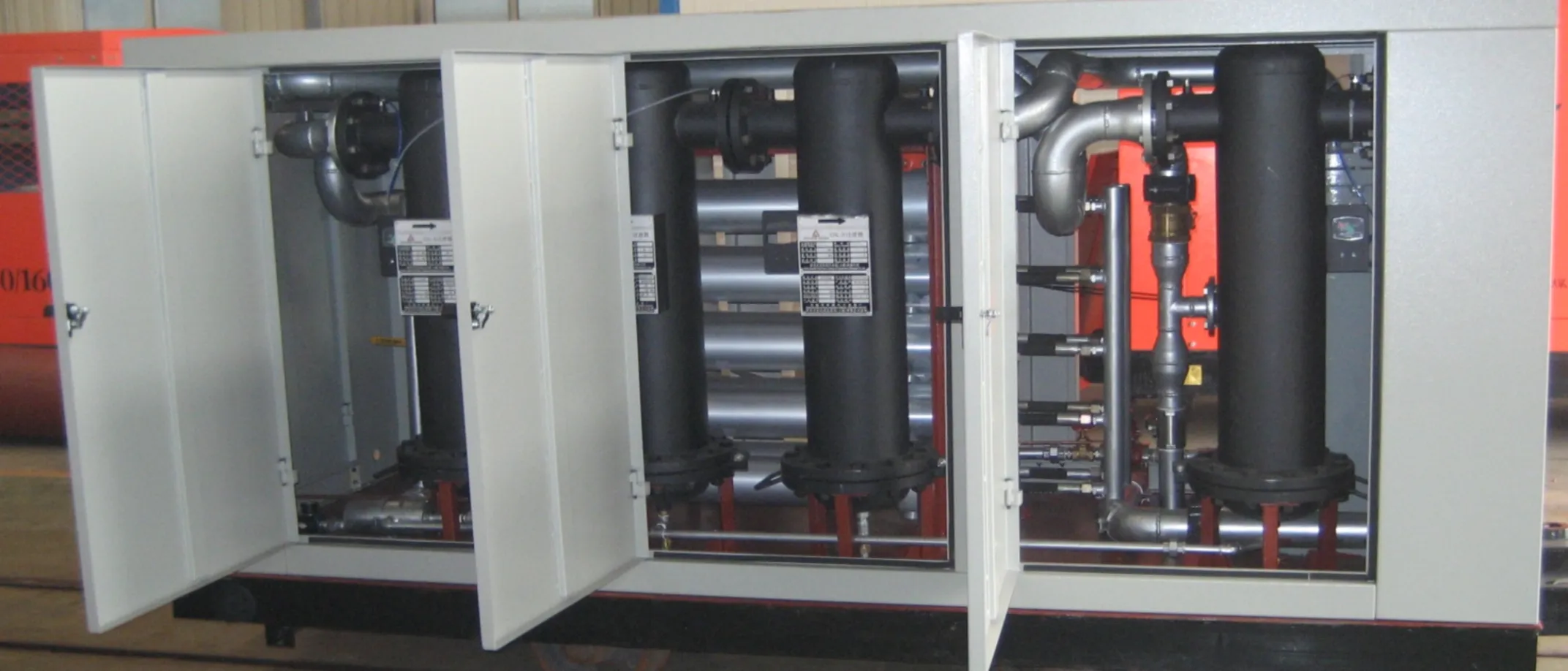

Membrane N₂ generators

Due to permeability differences of each gas, when compressed air goes through the membrane units, oxygen passes through membrane walls to atmosphere, while nitrogen is collected at outlet as a product gas. Higher pressure leads to higher permeability of each gas.

Due to permeability differences of each gas, when compressed air goes through the membrane units, oxygen passes through membrane walls to atmosphere, while nitrogen is collected at outlet as a product gas. Higher pressure leads to higher permeability of each gas.

　Product Details

MODELS:

Model

Capacity (Nm3/h)

Oxygen purity

Low output pressure (bar)

High output pressure (bar)

YCNM-10

10

95%-99.9%

5-10

150-350

YCNM-30

30

95%-99.9%

5-10

150-350

YCNM-50

50

95%-99.9%

5-10

150-350

YCNM-100

100

95%-99.9%

5-10

150-350

YCNM-150

150

95%-99.9%

5-10

150-350

YCNM-200

200

95%-99.9%

5-10

150-350

YCNM-300

300

95%-99.9%

5-10

150-350

YCNM-600

600

95%-99.9%

5-10

150-350

YCNM-900

900

95%-99.9%

5-10

150-350

YCNM-1200

1200

95%-99.9%

5-10

150-350

YCNM-2500

2500

95%-99.9%

5-10

150-350

YCNM-3600

2500

95%-99.9%

5-10

150-350

YCNM-4500

4500

95%-99.9%

5-10

150-350

*customized models are available.

MODELS:

Model

Capacity (Nm3/h)

Oxygen purity

Low output pressure (bar)

High output pressure (bar)

YCNM-10

10

95%-99.9%

5-10

150-350

YCNM-30

30

95%-99.9%

5-10

150-350

YCNM-50

50

95%-99.9%

5-10

150-350

YCNM-100

100

95%-99.9%

5-10

150-350

YCNM-150

150

95%-99.9%

5-10

150-350

YCNM-200

200

95%-99.9%

5-10

150-350

YCNM-300

300

95%-99.9%

5-10

150-350

YCNM-600

600

95%-99.9%

5-10

150-350

YCNM-900

900

95%-99.9%

5-10

150-350

YCNM-1200

1200

95%-99.9%

5-10

150-350

YCNM-2500

2500

95%-99.9%

5-10

150-350

YCNM-3600

2500

95%-99.9%

5-10

150-350

YCNM-4500

4500

95%-99.9%

5-10

150-350

*customized models are available.

ADVANTAGES:

-Fast get nitrogen in 5-10 minutes

-Easy operation and maintenance

-Compact size with smaller space occupation

-High compressive resistance module

-Working lifetime up to over 20 years

-Container type available

-High efficiency US/Japan membrane modules with low decay rate

-Filling ramp for storage or backup purpose available

-Note desired N2 output to atmosphere automatically

-Remote control and monitor via PC or mobile phone available

-Automatic shutdown once failure/power cut/lower purities

ADVANTAGES:

-Fast get nitrogen in 5-10 minutes

-Easy operation and maintenance

-Compact size with smaller space occupation

-High compressive resistance module

-Working lifetime up to over 20 years

-Container type available

-High efficiency US/Japan membrane modules with low decay rate

-Filling ramp for storage or backup purpose available

-Note desired N2 output to atmosphere automatically

-Remote control and monitor via PC or mobile phone available

-Automatic shutdown once failure/power cut/lower purities

COMMERCIAL APPLICATIONS:

• Oil fields

• Offshore drilling

• Refinery

• Chemicals

• LNG

• Coal mine

• Fruit/vegetable storage

COMMERCIAL APPLICATIONS:

• Oil fields

• Offshore drilling

• Refinery

• Chemicals

• LNG

• Coal mine

• Fruit/vegetable storage
