We provide a whole set of solution for the complete gas supply system for hospitals. The medical central gas supply system consists of below systems:

(1) Oxygen generation system

(2) Vacuum system

(3) Compressed air system

(4) Gas supply pipe network system & ancillary system

In engineering field, the engineering work of above central gas supply system is also what we excel in, as well as medical cleansing engineering system.

Medical oxygen generation system

This oxygen plant is becoming more and more popular in hospitals worldwide out of its unique advantages, compared to oxygen cylinders and liquid bulk oxygen.

This complete O₂ production plant consists of air compressor, air dryer, multi filters, receiver tanks, sensors, cloud monitoring system, electrical control system etc.

Features of medical oxygen production system:

• It operates automatically or manually.

• Easy and simple operation. Just click the mouse to complete the operation.

• Real-time monitoring of the working status, send warnings and alarms of all faults.

• For normal oxygen supply, the system only one group of oxygen generation line automatically start up to meet the oxygen demand of the hospital. And the automatic switching system between multiple lines to achieve the best state of energy saving.

• When a single equipment needs maintenance or repair, the standby unit can be started automatically to ensure the normal operation of the equipment.

The oxygen supply of the manifold can be switched automatically once power failure.

• The on-line monitoring device of oxygen purity and flow with high precision realizes the real-time oxygen output to the system monitoring and ensures the quality of the oxygen produced.

• Double oxygen sources configuration of oxygen production system and standby oxygen manifold station ensures uninterrupted oxygen supply.

• Remote control. Through the remote control center of supplier all working conditions of each sold unit are known to supplier for it to give proper suggestions. Also it monitors the breakdown alarms and help users to solve them.

Central vacuum aspiration system

Central vacuum aspiration system is generally used eliminate liquid of patients, such liquid in body, cleaning intestines and stomach, dirt of chests and lungs, absorb phlegm etc.

It consists of central vacuum station, water separator, pipes, valves, terminals etc. Feed vacuum is from the vacuum pumps that works to achieve negative pressure to generate suction for operation rooms, ICU, emergency rooms, remote cloud monitoring platform etc. The vacuum station consists of water ring vacuum pumps, vacuum tank, control box, alertor, blow down tank, generally two groups and one for work the other for reserve.

▪ Standardized and serialized production, with compact structure.

▪ Dynamic control of cooling water temperature and water volume to ensure pumps running in optimum state.

▪ Reserve group start to work automatically according to set point of suction consumption.

▪ Show running conditions, running data storage, failure protection and alarms.

▪ Open data communication interface for remote management.

Compressed air system

The medical compressed air system for hospital is always used patients inhaling, mixed as anesthetic gas, infant care, power gas for surgery tools etc. It is essential to use clean dry oil-free compressed air to meet food grade.

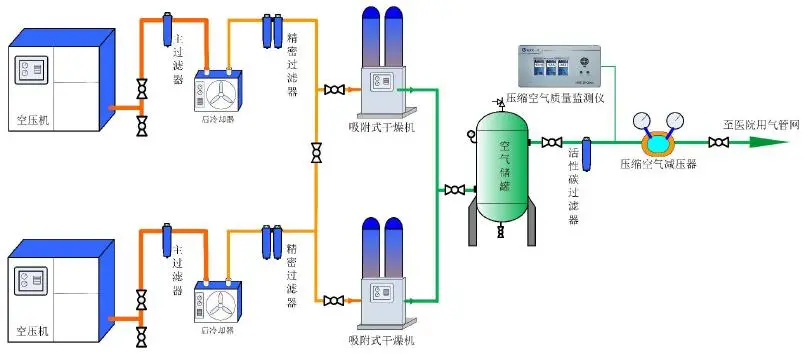

Compressed air is generated by air compressor, through after cooler which enters storage tank. Then after filtration, drying to eliminate impurities, oil vapor, moisture, through pressure reducer to stabilize pressure the compressed air goes into pipeline to patients end in operation rooms, ICUs etc.

The system consists of air compressor, after cooler, PSA air dryer, control cabinet etc. Normally two groups to be equipped, one for work the other for reserve.

▪ Oilless design to get oil-free clean air

▪ PSA dryer to achieve lower dew point (<-40°C) with less moisture in air

▪ Modular drying technology with compact size, convenient maintenance

▪ Open data communication interface to facilitate remote management.

▪ By mobile phone to intellectually monitor and record in real time, reminders to send for failure.

Central gas supply pipe network system & ancillary system

It is the channels to distribute produced gases to terminals in related rooms. It consists of medical gas pipe network system (oxygen pipeline system, compressed air pipeline system, vacuum suction pipeline system), bed head unit system, Internet of Things mobile nursing system etc.
